ARRI Alexa Mini anamorphic with ARRIRAW

4K Anamorphic, Full Frame & S-35 capability

DETAILS
SPECS

ARRI Alexa Mini 4K 4:3 35mm Digital Film Camera with 1:2.35 anamorphic and ARRIRAW licences as part of the package at no extra charge.

Manufacturer - ARRI

Mount - EF Mount, PL Mount

Sensor Size/Coverage - Super-35, Super-35 Anamorphic (4:3)

Media Standard - CFast 2.0

Capture Resolution - 4K, HD

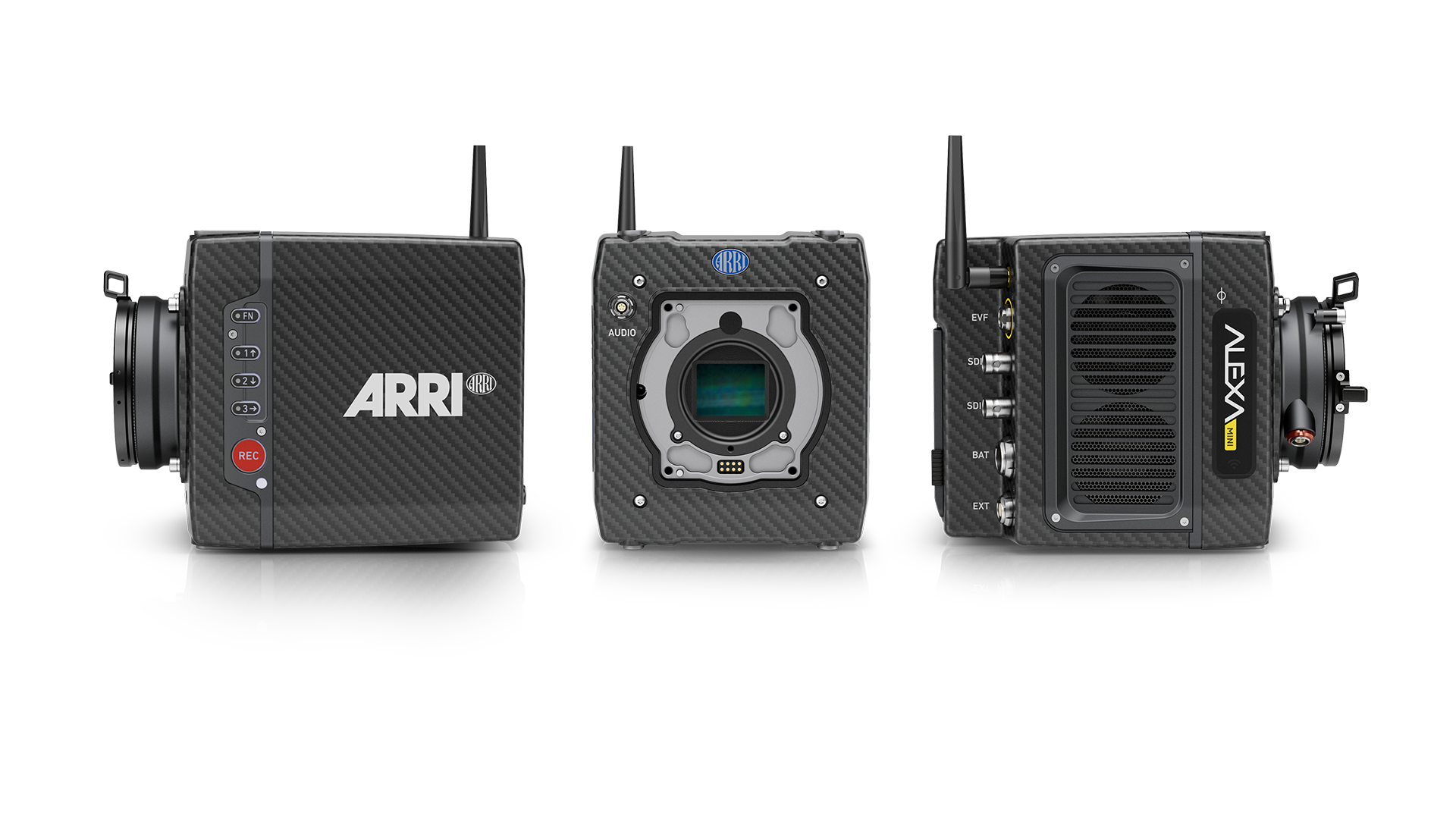

ARRI Alexa Mini is Lightweight carbon-fibre camera body in small form factor housing with 35mm PL mount recording prores up to 200fps onto CFAST2 Cards.

The versatile Alexa Mini camcorder can be used in a variety of configurations, so have spec’d this camcorder to also include the electronic viewfinder and 5? Starlight OLED monitor as part of the package without additional charge.

Consider the Integrated WLCS option

The standard camera package works extremely well with the 3-axis wireless lens control system available at additional charge with compact F-Force motors.

This permits full remote control of all of the camera’s functions plus comprehensive 3-axis lens control of the lens in one convenient package. We have chosen the CForce Mini package with smaller more compact motors for this system, as it will often be used in a portable environment or gimbal setup.

We envisage the versatile Alexa Mini camcorder to be used in a variety of configurations, so have spec’d this camcorder to also include the electronic viewfinder and 5? Starlight OLED monitor as part of the package without additional charge.

Codec and Frame Rates

Recording format: ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), ARRIRAW

Maximum resolution: 4K UHD or ARRIRAW 2.8K

Supported frame rates: 0.75 – 200 fpsShoots Apple Prores 4:2:2 or 4:4:4

Records upto 30fps uncompressed ARRIRAW on board

Anamorphic Capability

The Alexa Mini includes a 4:3 sensor for anamorphic capability, whilst retaining the capability for shooting 16:9 images too, in common with Alexa Plus 4:3/Alexa XT and this camera is equipped with the anamorphic licence preloaded.

ARRIRAW Licence

The Alexa Mini includes the ARRIRAW licence for recording ARRIRAW data to capture the full dynamic range on-board in common with Alexa Plus 4:3/Alexa XT, though to C-FAST2 cards.

Ensure that you ask for this when making a booking

Shooting Audio

Consider hiring the Wooden Camera A Boxto provide 2 x XLR inputs.

Compatible Cards

Sandisk 128GB CFAST 2.0 Memory Card 515/440MB/s

Lens mount interchangeability

The Alexa Mini permite PL, B4 and also EF mounts to be fitted by VMI. Please request these with your order.

Dimensions
Length:	185 mm/7.3?
Width:	125 mm/4.9?
Height:	140 mm/5.5?
	(camera body with PL lens mount)
Weight	2.3 kg/5 lbs (camera body with titanium PL lens mount)
Sensor	35 mm format ARRI ALEV III CMOS with Bayer pattern color filter array

Photo sites (with surround view)	16:9
HD:	2880×1620 (3168×1772)
2K:	2868×1612 (3154×1764)
3.2K:	3200×1800 (3424×1926)
4K UHD:	3200×1800 (3424×1926)
	4:3
2K:	2867×2150 (3168×2160)

Shutter	Electronic shutter, 5.0° to 356.0°
Exposure latitude	14+ stops over the entire sensitivity range from EI 160 to EI 3200
	as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
Exposure index	EI 800 base sensitivity
Filters	Built-in motorized ND filters 0.6, 1.2, 2.1
Lens mounts	Titanium PL mount with L-Bus connector and LDS

Recording media	CFast 2.0 memory cards

Recording formats	HD 1920×1080
	2K Cine 16:9 2048×1152
	2K Cine 4:3 2048×1536 *
	3.2K 3200×1800
	4K UHD 3840×2160
	ARRIRAW 2.8K 16:9 2880×1620 *
	ARRIRAW 2.8K 4:3 2880×2160 *
Recording codec	ProRes 4444XQ, 4444, 422 (HQ), 422, 422(LT), ARRIRAW *

Color output	Rec 709, custom look or Log C
Look control	Import of custom 3D LUT, ASC CDL parameter (slope, offset, power, saturation)
Adjustable image parameters	Knee, gamma, saturation, black gamma, saturation by hue
Focus and exposure control	Peaking, zebra, false color
White balance	Manual and auto white balance
Sound level	-20 dB(A) at standard frame rates
Environmental	-20° C to +50° C (-4° F to +122° F) @ 95% humidity max, non-condensing
	Splash and dust-proof through sealed electronics
Viewfinder	Multi Viewfinder MVF-1 (OLED and LCD ) with flip-out LCD screen
	military-grade connector to camera
Control interface	Soft buttons and OSD on SDI output, integration of Transvideo StarliteHD touch interface *
ARRI lens motor control	Built-in radio interface for ARRI lens control
	L-Bus motor output for daisy-chainable cforce lens control motors
Wi-Fi remote control	Built-in Wi-Fi interface and web-based remote control from phones, tablets and laptops
Custom control	Optional GPIO interface for integration with custom control interfaces
Power input	Lemo 8-pin, 10.5-34 V DC
Video outputs	2x HD-SDI out 1.5G
3G:	uncompressed HD video with embedded audio and metadata, SDI-6G interface to external CODEX recorder *
Inputs	SDI-Genlock (optional activation through ARRI Service),timecode (in and output)
