Full Frame, Large Format, Modern lens. Timeless look.
Full Frame (Large Format) ARRI Signature Prime set. Supplied as standard with LPL mounts.
Manufacturer- ARRI
Lens Groupset - ARRI Signature Primes
Mount - LPL Mount
Sensor Size/Coverage - Full Frame, Large Format, super 35
Lens Type - Prime Lens Set
The Arri Signature Prime lenses offer a unique look never seen before in cinema. Warm, smooth skin; open shadows and crisp blacks; and bokeh like looking through a window in the rain. The timeless look of Signature will never go out of style.
ARRI introduces a complete large-format system that meets and exceeds modern production requirements, delivering unprecedented creative freedom. Based on a large-format 4K version of the ALEXA sensor, the system comprises the ALEXA LF camera, ARRI Signature Prime lenses, LPL lens mount and PL-to-LPL adapter. These system elements have been designed to take fullest advantage of the enlarged sensor, while also offering compatibility with existing lenses, accessories and workflows.

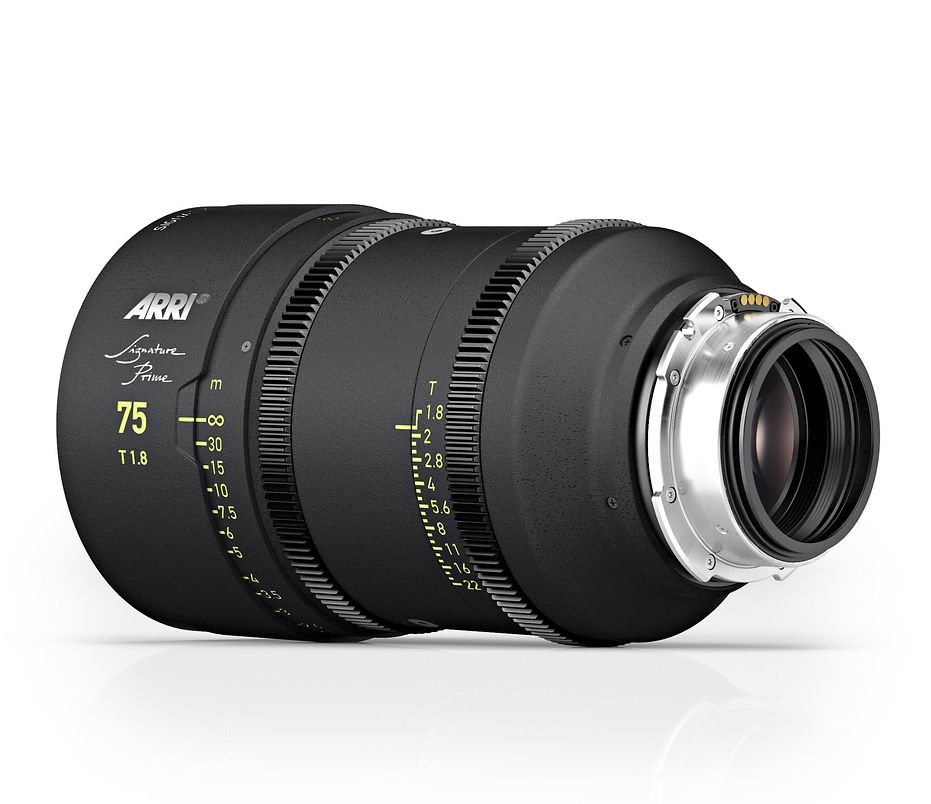

Arri Signature Prime Set LPL (25-75mm/T1.8)
- All T1.8
- LPL mount

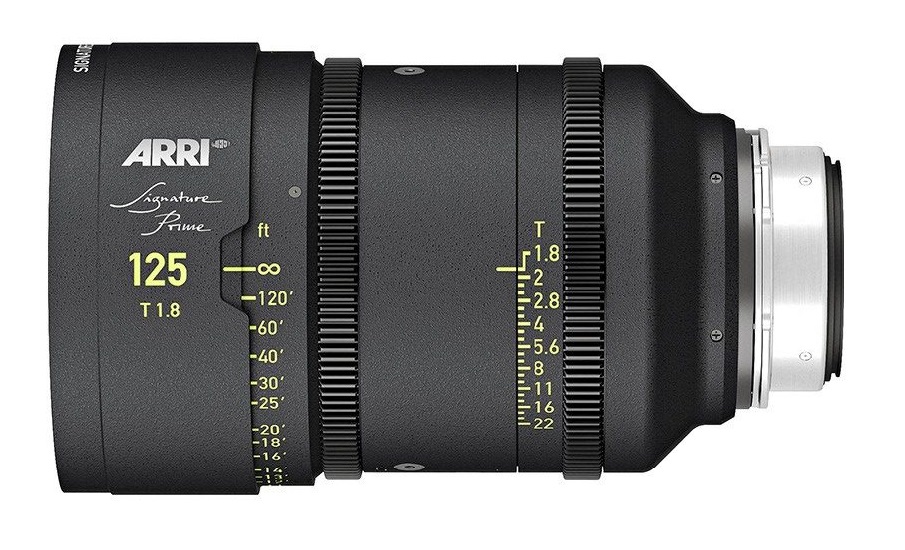

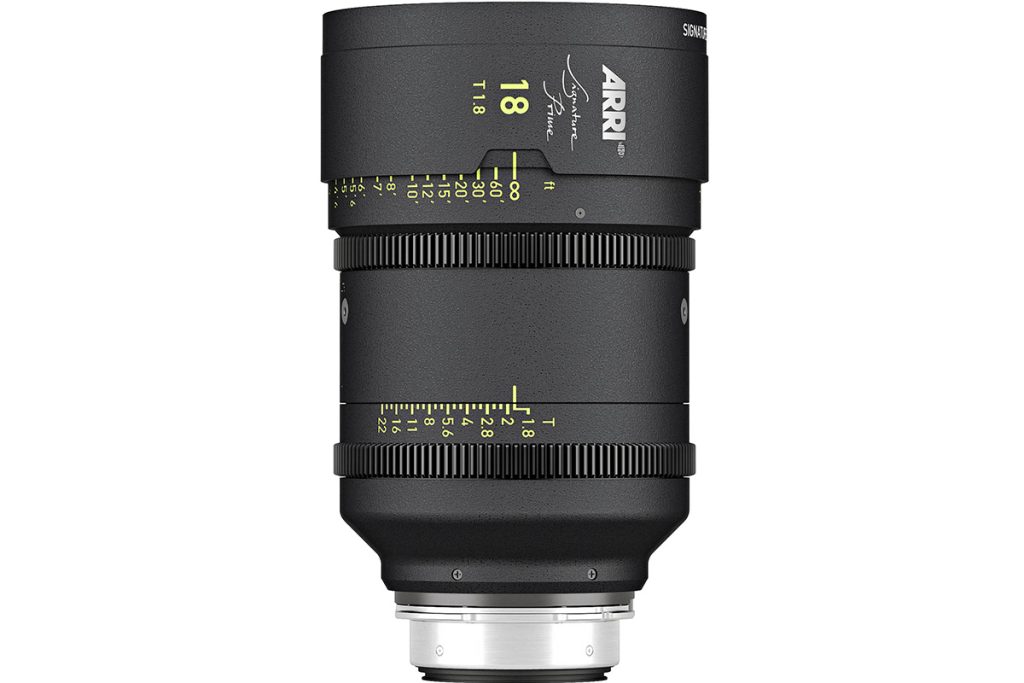

- 18-25-35-47-75-95-125 mm/T1.8
- Next Generation LDS-2 Lens Data System
- Fine Details beautifully rendered with smooth focus fall-off
- State-of-the-art optical precision
- Render organic, emotionally engaging images
- Machined magnesium lens barrels
Lens Mount | LPL |
MOD from Sensor Plane (Minimum Marked Distance) | 0.35m / 14? |
MOD from Lens Front | 0.13m / 5.1? |
Length from Flange | 178mm / 7.01? |
Magnification Ratio at MOD (Paraxial) | 1:9.2 |
Entrance Pupil Position (related to image plane, in direction to object) | 189.9mm / 7.48? |
Angle of View (H – V – D for LF Open Gate | 91.4° / 71.0° / 102.6° |
Front Diameter | 114mm / 4.49? |
Maximum Housing Diameter | 115mm / 4.53? |
Weight (lens only) | 2.0kg / 4.4lb |
|
Lens Mount |
LPL |
|
MOD from Sensor Plane (Minimum Marked Distance) |
0.35m / 14? |
|
MOD from Lens Front |
0.13m / 5.1? |
|
Length from Flange |
178mm / 7.01? |
|
Magnification Ratio at MOD (Paraxial) |
1:7.1 |
|
Entrance Pupil Position (related to image plane, in direction
to object) |
178.1mm / 7.01? |
|
Angle of View (H – V – D for LF Open Gate |
73.0° x 54.4° x
84.0° |
|
Front Diameter |
114mm / 4.49? |
|
Maximum Housing Diameter |
115mm / 4.53? |
|
Weight (lens only) |
1.9kg / 4.2lb |
|
Lens Mount |
LPL |
|
MOD from Sensor Plane (Minimum Marked Distance) |
0.35m / 14? |
|
MOD from Lens Front |
0.13m / 5.1? |
|
Length from Flange |
178mm / 7.01? |
|
Magnification Ratio at MOD (Paraxial) |
1:6.4 |
|
Entrance Pupil Position (related to image plane, in direction
to object) |
166.0mm / 6.54? |
|
Angle of View (H – V – D for LF Open Gate |
65.2° x 47.8° x
75.8° |
|
Front Diameter |
114mm / 4.49? |
|
Maximum Housing Diameter |
115mm / 4.53? |
|
Weight (lens only) |
1.8kg / 4.0lb |
|
Lens Mount |
LPL |
|
MOD from Sensor Plane (Minimum Marked Distance) |
0.35m / 14? |
|
MOD from Lens Front |
0.13m / 5.1? |
|
Length from Flange |
178mm / 7.01? |
|
Magnification Ratio at MOD (Paraxial) |
1:4.8 |
|
Entrance Pupil Position (related to image plane, in direction
to object) |
159.8mm / 6.29? |
|
Angle of View (H – V – D for LF Open Gate |
49.2° x 35.4° x
58.2° |
|
Front Diameter |
114mm / 4.49? |
|
Maximum Housing Diameter |
115mm / 4.53? |
|
Weight (lens only) |
1.9kg / 4.2lb |
|
Lens Mount |
LPL |
|
MOD from Sensor Plane (Minimum Marked Distance) |
0.45m / 18? |
|
MOD from Lens Front |
0.23m / 9.0? |
|
Length from Flange |
178mm / 7.01? |
|
Magnification Ratio at MOD (Paraxial) |
1:5.3 |
|
Entrance Pupil Position (related to image plane, in direction
to object) |
145.4mm / 5.72? |
|
Angle of View (H – V – D for LF Open Gate |
34.8° x 24.8° x
41.8° |
|
Front Diameter |
114mm / 4.49? |
|
Maximum Housing Diameter |
115mm / 4.53? |
|
Weight (lens only) |
2.1kg / 4.6lb |
|
Lens Mount |
LPL |
|
MOD from Sensor Plane (Minimum Marked Distance) |
0.65 m / 26“ |
|
MOD from Lens Front |
0.43 m / 16.9“ |
|
Length from Flange |
178 mm / 7.01“ |
|
Magnification Ratio at MOD (Paraxial) |
1:7.2 |
|
Entrance Pupil Position (related to image plane, in direction
to object) |
118.6 mm / 4.67“ |
|
Angle of View (H – V – D for LF Open Gate |
27.6° / 19.4° /
33.2° |
|
Front Diameter |
114 mm / 4.49“ |
|
Maximum Housing Diameter |
115 mm / 4.53? |
|
Weight (lens only) |
1.9 kg / 4.2 lb |
Lens Mount | LPL |
MOD from Sensor Plane (Minimum Marked Distance) | 0.65 m / 26“ |
MOD from Lens Front | 0.43 m / 16.9“ |
Length from Flange | 178 mm / 7.01“ |
Magnification Ratio at MOD (Paraxial) | 1:7.2 |
Entrance Pupil Position (related to image plane, in direction to object) | 118.6 mm / 4.67“ |
Angle of View (H – V – D for LF Open Gate | 27.6° / 19.4° / 33.2° |
Front Diameter | 114 mm / 4.49“ |
Maximum Housing Diameter | 115 mm / 4.53? |
Weight (lens only) | 1.9 kg / 4.2 lb |
